Plant Growth Chamber ＜Standard model＞

Models L(P)H-241PFP/D/ST-S(P) and L(P)H-411PFP/D/ST-S(P) are standard plant growth chambers. There are two control modes available. One is a changeover mode, changing between constant operation and day/night switching operation. The other is a program control mode. Three-position controller is used for temperature and humidity control, which provides energy-saving effects. A wide variety of chambers are available in sizes ranging from 240 liters to 410 liters.

Features

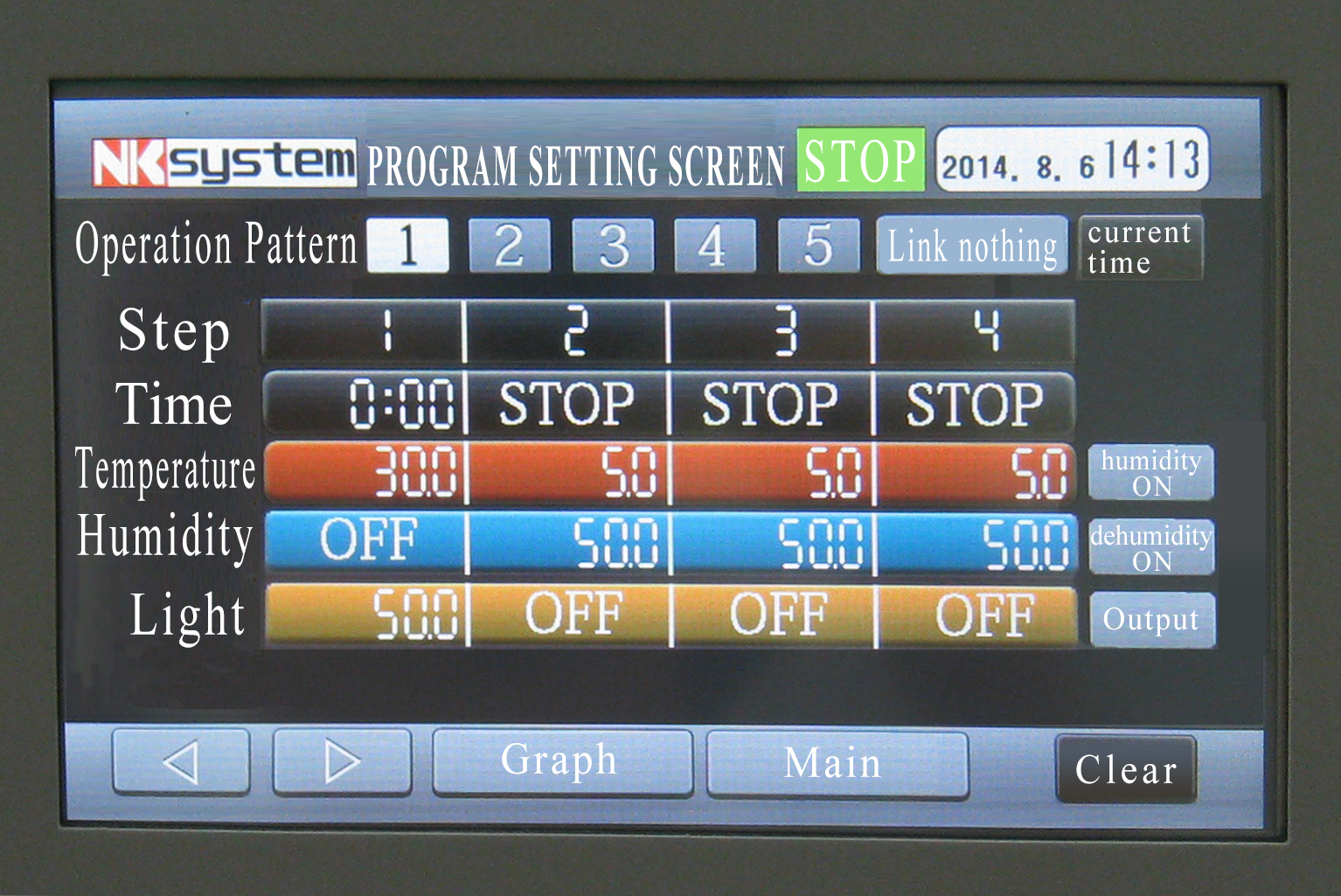

  • An operation touch panel with time display is mounted on the upper part of the main body, which allows easy operation.
  • Model L(P)H-□PFP/D/ST-S allows both constant operation at any temperature/light/ (humidity) and day/night switching operation.
  • Model L(P)H-□PFP/D/ST-SP allows a program control.

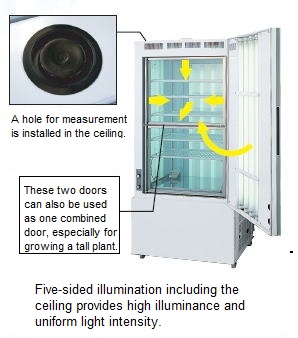

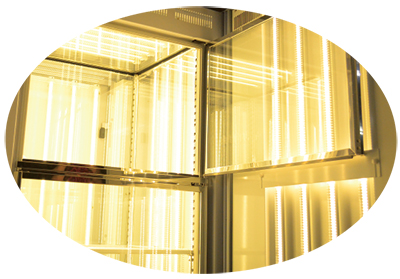

  • Five-sided illumination. The light can be continuously dimmed form 20% to 100% or 0%.
  • Model LHs don’t need a drain hose or a tank because of a forced evaporation system inside the chamber.
  • Three-position controller is used for temperature and humidity control (proportional control for heating), which provides low running costs.
  • The inner door has energy-saving functions, being used as one door or two up-and-down doors as per usual.
  • Two-level wind speed control is installed to protect wind-sensitive plants..
  • A hole of 40 mm diameter for measurement is included as standard.
  • Humidity control system can be selected from “only humidification” or “only dehumidification” or “both humidification and dehumidification.”

Applications

  • Plant cell/tissue culture, germination, acclimation, or growth test
  • Environmental test
  • Growth of rice, arabidopsis, etc.
  • Insect experiment
  • Cell culture
  • Environmental resistance test for plants
  • Storage test at constant temperature and at constant humidity (only Model LPH)

Options

  • Table for a water tank (Model LPH), network observing system, MultiSpex PF-75T, metal halide lamp, carbon dioxide removal unit.

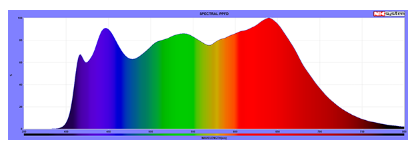

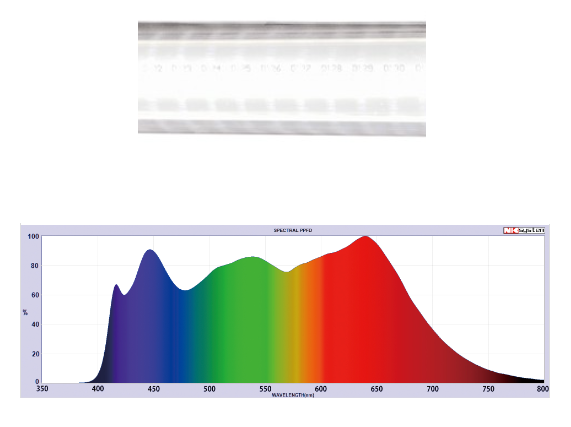

White LED spectrum

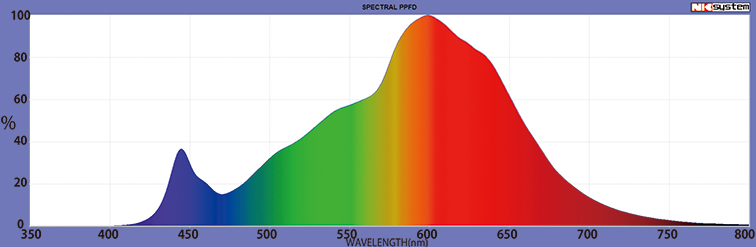

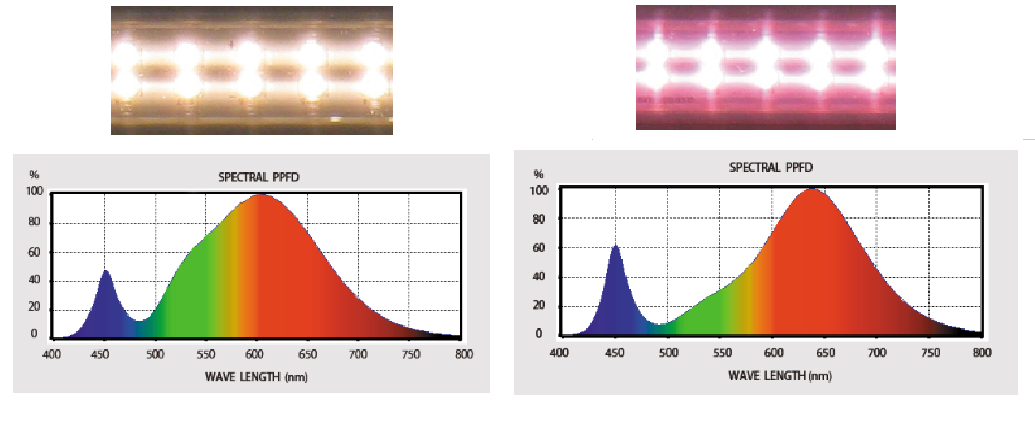

Yellow LED spectrum

Specifications

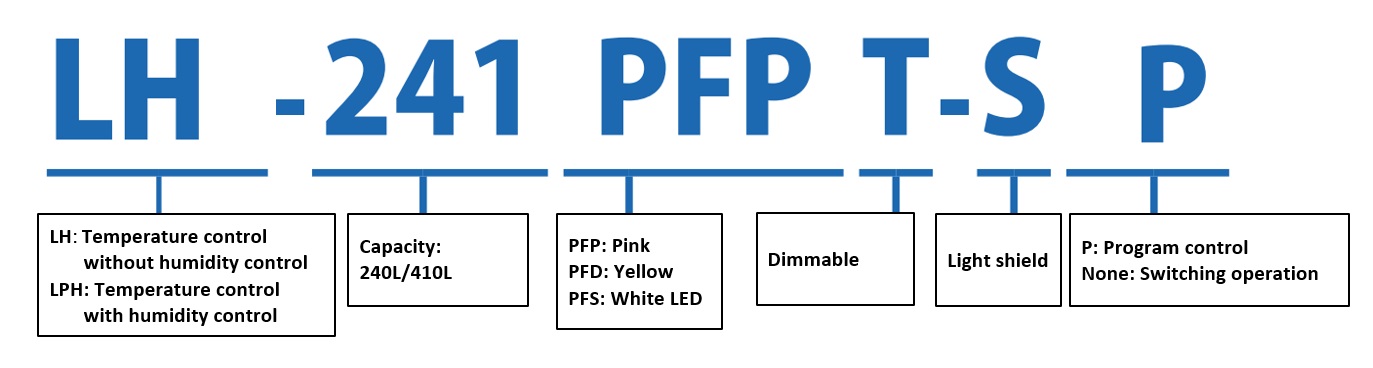

Model designation



* Power outlets inside the chamber have a maximum current capacity of 1A.

240 ℓ series

Model Pink LED LH-241PFPT-S LPH-241PFPT-S LH-241PFPT-SP LPH-241PFPT-SP
Yellow LED LH-241PFDT-S LPH-241PFDT-S LH-241PFDT-SP  LPH-241PFDT-SP
White LED LH-241PFST-S LPH-241PFST-S LH-241PFST-SP LPH-241PFST-SP
Outer dimensions (WxDxH) [mm] 760 × 726 × 1,767
Inner dimensions (WxDxH) [mm] 512 × 485 × 980
Control system Changeover between constant operation and day/night switching operation  Step program, built-in clock control (24 hours) 24 steps/5 patterns with a pattern link function
Repeat ― 1 to 99 times or unlimited
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature  +5℃ to 50℃ ± 1℃ (15℃ to 50℃ when all lights on)
Humidity ― 50-80%RH ± 10%RH (15-45℃) ― 50-80%RH ± 10%RH (15-45℃)
Illuminance 0 to 12,000 lx for pink LEDs and 0 to 20,000 lx for yellow and white LEDs
They can be continuously dimmed from 20% to 100% or 0% (all lights off)
Photon flux density 0 to 260 μmolm-2s-1 for pink, 0 to 280 μmolm-2s-1 for yellow, and 0 to  330 μmolm-2s-1 for white
Light source LED lamps for plant growth
Number of LEDs  Four 20W LED lamps x 2 sides (on the ceiling and door), four 40W LED lamps x 3 sides (on the back, right, and left sides)
Refrigerator 300W
Heater  400W 500W 400W 500W
Humidifier ― 80W  ― 80W
Shelf 5 shelves (adjustable)
Operation current (maximum) 8A (9A for LH-241PFST-S) 12.5A (13.5A for LPH-241PFST-S) 8A (9A for LH-241PFST-SP) 12.5A (13.5A for LPH-241PFST-SP)
Power requirement Single phase 100V 50/60Hz　15A E
Weight (kg) About 225 About 235 About 225 About 235



410 ℓ series

Model Pink LH-411PFPT-S LPH-411PFPT-S LH-411PFPT-SP LPH-411PFPT-SP
Yellow LH-411PFDT-S LPH-411PFDT-S LH-411PFDT-SP  LPH-411PFDT-SP
White LH-411PFST-S LPH-411PFST-S LH-411PFST-SP LPH-411PFST-SP
Outer dimensions (WxDxH) [mm] 880 × 806 × 1,875
Inner dimensions (WxDxH) [mm] 670 × 565 × 1,100
Control system Changeover between constant operation and day/night switching operation  Step program, built-in clock control (24 hours) 24 steps/5 patterns with a pattern link function
Repeat ― 1 ~ 99 times or unlimited
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature  +5～50℃ ± 1℃ (15～50℃ when all lights on)
Humidity ― 50-90%RH ± 10%RH (15-45℃)* ― 50-90%RH ± 10%RH (15-45℃)*
Illuminance 0 to 12,000 lx for pink LEDs and 0 to 20,000 lx for yellow and white LEDs
They can be continuously dimmed from 20% to 100% or 0% (all lights off)
Photon flux density 0 to 260 μmolm-2s-1 for pink, 0 to 280 μmolm-2s-1 for yellow, and 0 to  330 μmolm-2s-1 for white
Light source LED lamps for plant growth
Number of LEDs  20W LED x 6 lamps x 1 side (on the ceiling), 40W LED x 4 lamps x 4 sides (on the back, right, and left sides)
Refrigerator 300W
Heater  500W
Humidifier ― 80W  ― 80W
Shelf 6 shelves (adjustable)
Operation current (maximum) 10A (11A for LH-411PFST-S) 13.5A (14.5A for LPH-411PFST-S) 10A  (11A for LH-411PFST-SP) 13.5A (14.5A for LPH-411PFST-SP)
Power requirement Single phase 100V 50/60Hz　15A E
Weight (kg) About 275 About 285 About 275 About 285

* For  LPH-411PFST-S(P), humidity range (temperature range) is as follows:
  50-80%RH±10%RH (15-45℃)
  50-90%RH±10%RH (25-45℃)

# Temperature sensor: platinum resistance temperature sensor, humidity sensor: capacitance measurement sensor, humidifier: ultrasonic humidifier.
# Power requirement does not include the power-outlet installed in the body.
# These chambers are designed to operate in ambient temperatures up to 30℃. The specified performance may not be achieved depending on actual usage conditions.
# If lighting, temperature setting should be 15℃ or higher.
# The specified performance may not be achieved depending on the combination of temperature and humidity.
# Depending on the sample, drainage installation may be required.
# Temperature can be controlled between +5℃ and +50℃.
# When controlling humidity, the temperature should be set between 15℃ and 45℃ in Model 241/411.
