Products

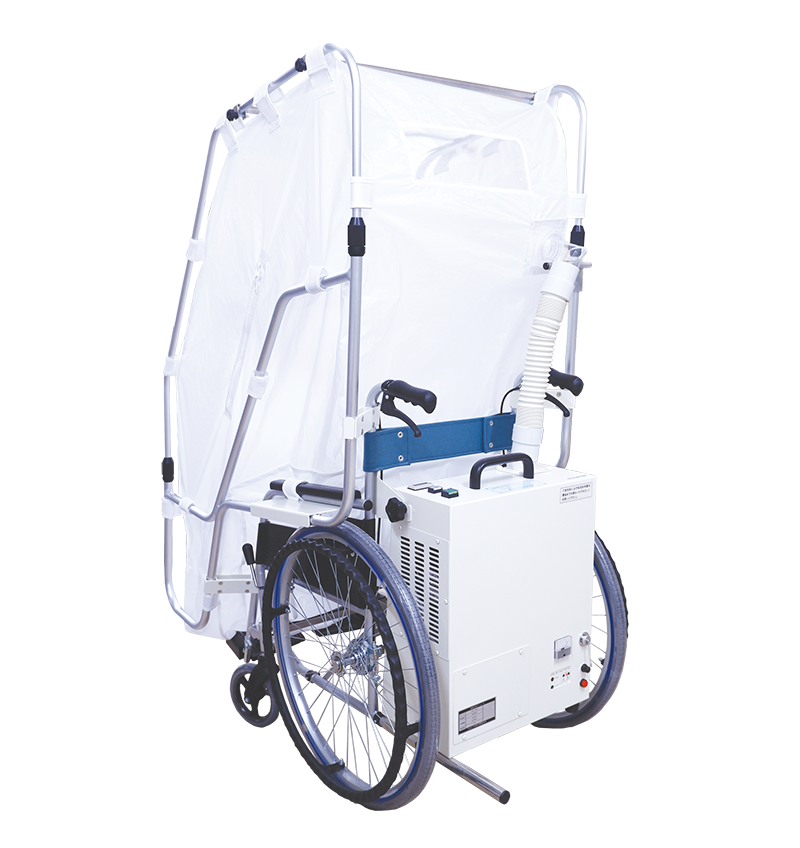

Wheelchair Isolator (negative pressure)

For moving infected patients or those suspected of carrying infectious diseases

Features

  • The resemblance to a wheelchair helps patients feel more comfortable during transportation..
  • The use of a HEPA filter with bactericidal enzymes prevents viruses and bacteria from leaking out.
  • A single caregiver is enough to handle this model (with a hand break).
  • The adjustable height feature enables the wheelchair to be loaded into a van without requiring the patient to be removed..
  • Four-hour continuous operation is possible with a battery (built-in battery can be recharged by household AC power).
  • The capsule-like isolator can be removed and repeatedly used after disinfection.

You can watch a video explaining the usage.(You tube)。

Options

  • Attachment bracket for a transfusion bag
  • Mounting tool for an oxygen cylinder
  • Transparent isolation capsule

Specifications

Model CIW-1500N

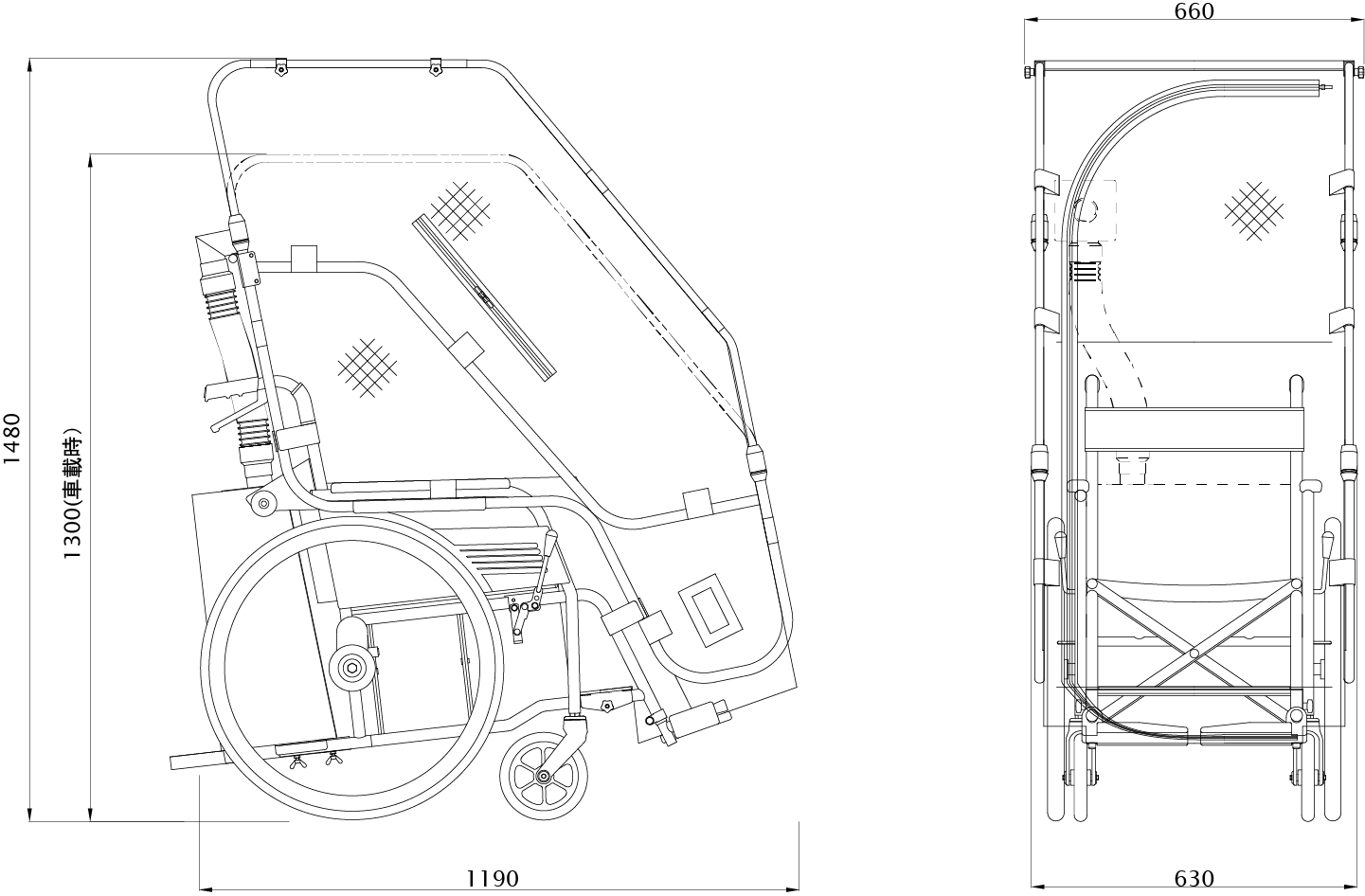

Outer dimensions (W×D×H) (㎜) 660(W) × 1,190(D) × 1,480(H)(1,300 when shortened)
Filter  Dust collection efficiency of HEPA filter:PAO particle 0.3μm, 99.99% or more
with bactericidal enzymes.
Air volume flow rate 0.2 m3/min
Ventilation frequency  25 times/h
Internal pressure Negative pressure(-2.5 Pa or lower)
Power requirement  AC power/while recharging: single phase 100V 1A
When carrying:internal power supply at DC 12V(4-hour continuous operation)
Weight(㎏) About 45

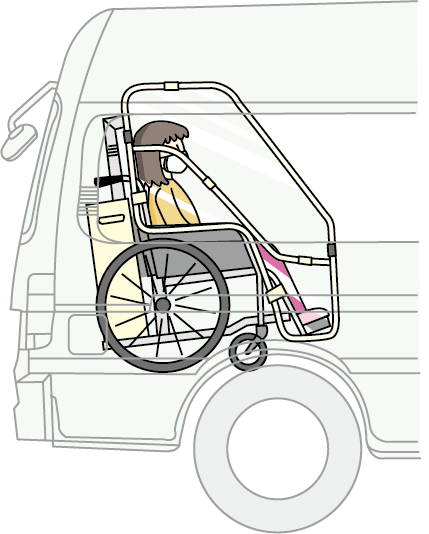

*It can be loaded in a van having a space of 670W × 1,200D × 1,310H mm or more.
